Fully Automatic Loop Handle, Die-Cut, Draw Tape & Patch Handle Bag Making Machine
BACK
INQUIRY

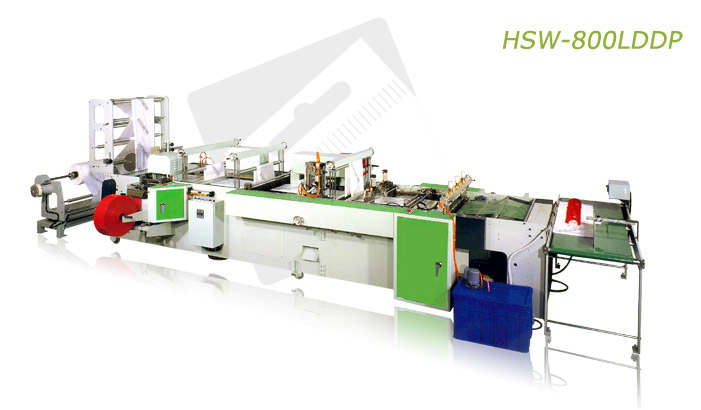

Fully Automatic Loop Handle, Die-Cut, Draw Tape & Patch Handle Bag Making Machine (HSW-800LDDP)
MAIN FEATURES
MAIN FEATURES
FEATURE 1

FEATURE 1








MAIN FEATURES
SPECIFICATION
Specification:
MODEL
HSW-800LDDP
Min. width
250mm
Max. width
650mm
Min. length
250mm
Max. length
650mm
Top Gusset
70-75mm
Bottom Gusset
up to 85mm
Max. Production Speed(cycle/min.)
40-80
Thickness of film
0.03-0.09
Heaters
2.6KWx1, 0.8KWx2, 0.3KWx4, 0.4KWx8
Power Required
8.8KW
Machine Dimensions
7600X3200X1850mm
Machine Weight
4000kg
Packing Size
5800X2300X2000mm
Gross Weight
4500kg
Air Compressor (not Included)
7.5HP
