HOMEPRODUCTSBottom Sealing bagHigh Efficient Double Deck Sealing System Bags Making Machine With Auto Puncher (HDBS-28AUSR)

PRODUCTS

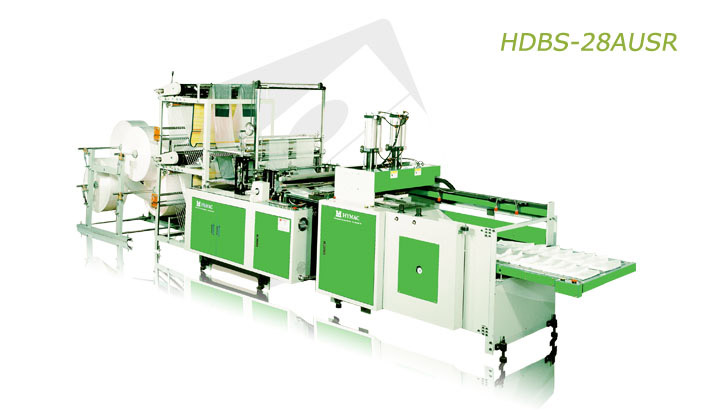

High Efficient Double Deck Sealing System Bags Making Machine With Auto Puncher
BACK
INQUIRY





Fully automatic double deck T-Shirt bags making machine (HDBS-28AU)
MAIN FEATURES
MAIN FEATURES
FEATURE 1

FEATURE 1








MAIN FEATURES
SPECIFICATION
Specification:
MODEL
HDBS-28AU
Max. bag width
700mm(27.6")X1 line, 340mm(13.4")X2 line
Max. bag length
T-Shirt bag 700mm,
Bottom Sealing bag 1000mm
Film thickness
0.008~0.15mm
Production speed
40~120 cycle/min./line
Driving motor(AC)
1HP
Heater capacity
4400w
Electrical requirement
5550w
Machine dimension
5630X1500X1720mm
Packing dimension
2810X1540X2120mm,2970X1303X1697mm
Weight(net/gross)
820/950kgs, 300/500kgs
