High Speed multi-functional servo drive side sealing bag making machine
BACK
VIDEO
INQUIRY

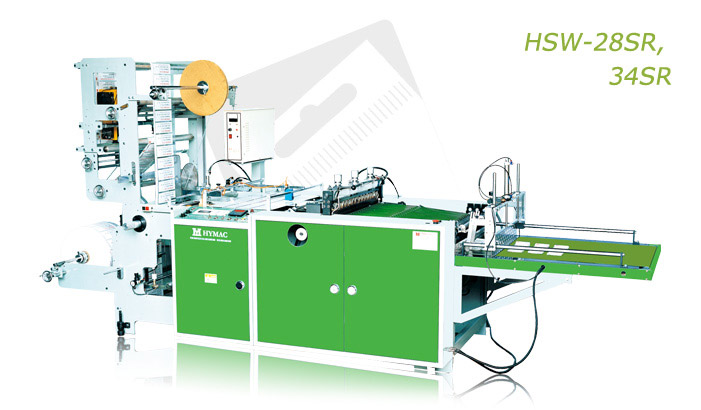

High Speed multi-functional servo drive side sealing bag making machine (HSW-28SR, 34SR)
MAIN FEATURES
MAIN FEATURES
FEATURE 1

FEATURE 1








MAIN FEATURES
SPECIFICATION
Specification:
MODEL
HSW-28SR
HSW-34SR
Max. bag width
700mm(27.60")
850mm(33.50")
Max. bag length
700mm(27.60")
700mm(33.50")
Film thickness
0.008~0.1mm
0.008~0.1mm
Production speed
60~180 cycle/min./line
60~180 cycle/min./line
Driving motor
1HP
2HP
Heater capacity
1600w
2000w
Electrical requirement
6700w
7000w
Machine dimension (LxWxH)
3800X1800X2000mm
3800X2000X2000mm
