HOMEPRODUCTST-shirt bagFully Automatic Servo Driver Three lines T-Shirt Bag Making Machine With Hot Slitting & Gusseting Unit (HTS-45ST3)

PRODUCTS
Fully Automatic Servo Driver Three lines T-Shirt Bag Making Machine With Hot Slitting & Gusseting Unit
BACK
INQUIRY

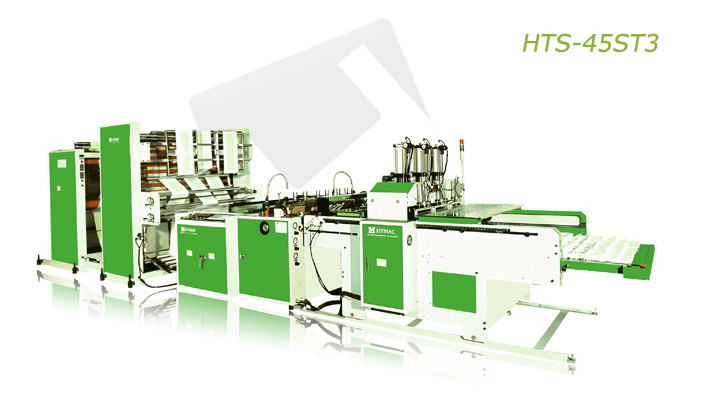

Fully automatic servo drive T-Shirt bag making machine with hot slitting & gusseting unit (HTS-45ST3)
MAIN FEATURES
MAIN FEATURES
FEATURE 1

FEATURE 1








MAIN FEATURES
SPECIFICATION
Specification:
MODEL
HTS-45ST3
Min. width
180mm
Max. width
320mm
Min. length
380mm
Max. length
650mm
Max. width of film roll
1600mm
Sealing thickness
0.008~0.035mm
Production Speed
250 cycle/min./line
Power requirement
11KW
Pneumatic requirement
8kgs/cm2:750L/min, 10HP
Machine dimension
8270X1800X2070mm
