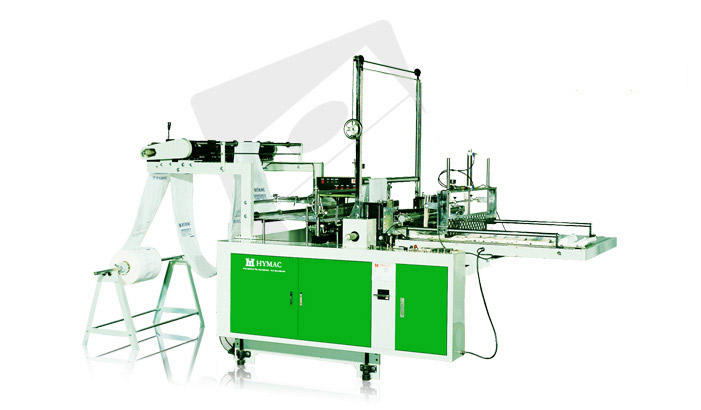

HBS-26E, 28E, 34E, 40E
Main features:
Specifications
|
MODEL
|
HBS-26E
|
|
Max. bag width
|
650mm(25.60")
|
|
Max. bag length
|
1000mm(39.40")
|
|
Film thickness
|
0.008~0.15mm
|
|
Length tolerance
|
±1mm
|
|
Production speed
|
40~100 cycle/min./line
|
|
Driving motor(AC)
|
1HP
|
|
Heater requirement
|
1000w
|
|
Electrical requirement
|
1850w
|
|
Machine dimension
|
1800X1320X1580mm
|
|
Packing dimension
|
1820X1450X1600mm
|
|
Gross Weight
|
630kgs
|
|
MODEL
|
HBS-28E
|
|
Max. bag width
|
700mm(47.30")
|
|
Max. bag length
|
1200mm(47.30")
|
|
Film thickness
|
0.008~1.5mm
|
|
Length tolerance
|
±1mm
|
|
Production speed
|
40~100 cycle/min./line
|
|
Driving motor(AC)
|
1HP
|
|
Heater requirement
|
1200w
|
|
Electrical requirement
|
2850w
|
|
Machine dimension
|
1800X1600X1680mm
|
|
Packing dimension
|
1820X1640X1850mm
|
|
Gross Weight
|
700kgs
|
|
MODEL
|
HBS-34E
|
|
Max. bag width
|
850mm(33.50")
|
|
Max. bag length
|
1200mm(47.30")
|
|
Film thickness
|
0.008~0.15mm
|
|
Length tolerance
|
±1mm
|
|
Production speed
|
40~100 cycle/min./line
|
|
Driving motor(AC)
|
2HP
|
|
Heater requirement
|
2000w
|
|
Electrical requirement
|
3600w
|
|
Machine dimension
|
1800X1680X1680mm
|
|
Packing dimension
|
1800X1730X1850mm
|
|
Gross Weight
|
870kgs
|
|
MODEL
|
HBS-40E
|
|
Max. bag width
|
1000mm(39.40")
|
|
Max. bag length
|
1500mm(59.00")
|
|
Film thickness
|
0.008~1.5mm
|
|
Length tolerance
|
±1mm
|
|
Production speed
|
40~100 cycle/min./line
|
|
Driving motor(AC)
|
2HP
|
|
Heater requirement
|
2000w
|
|
Electrical requirement
|
3600w
|
|
Machine dimension
|
1800X1830X1680mm
|
|
Packing dimension
|
1880X1910X1850mm
|
|
Gross Weight
|
950kgs
|
